Muelle de carga pesada M99MC0937
  • Muelle de carga pesada M99MC0937

Muelle de carga pesada M99MC0937

M99MC0937
Rating
Muelle de carga pesada M99MC0937
€324.79
Maximum 8 working days
Quantity
This product is in stock

Compare



Download PDF
Description

Muelle de carga pesada heavy spring

Material 51CrV4

Pintado color negro

Extremos rectificados

tolerancias de acuerdo a DIN 2095

Product Details
M99MC0937

Data sheet

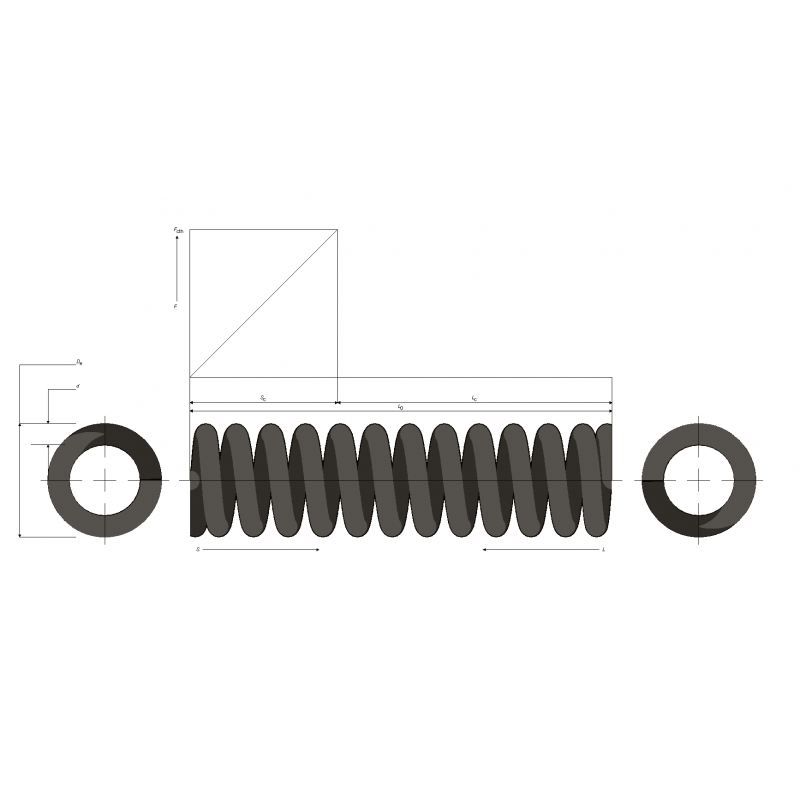

FREE LENGTH
340
OUTSIDE DIAMETER
120
INSIDE DIAMETER
88
WIRE DIAMETER
16
ACTIVE COILS
13.5
TOTAL COILS
15
SPRING RATE (K)
4.65
RAW MATERIAL
51CrV4
ENDS
CLOSED & GROUND
SURFACE COATING
BLACK COLOUR PAINTED
SOLID LENGTH
240
LOAD LENGHT L1
290
LOAD AT L1
2325
PITCH
25.19
SPRING INDEX
6.50
