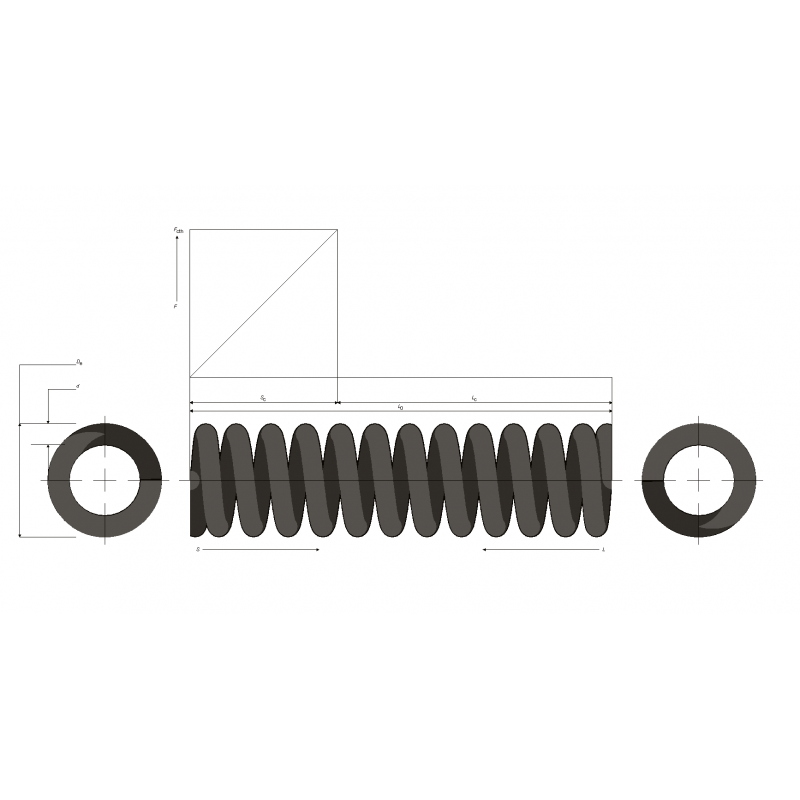

Muelle de carga pesada M99MC1156
  • Muelle de carga pesada M99MC1156

Muelle de carga pesada M99MC1156

M99MC1156
Rating
Muelle de carga pesada M99MC1156
€290.08
Maximum 8 working days
Quantity
This product is in stock

Compare



Download PDF
Description

Muelle de carga pesada heavy spring

Material 51CrV4

Pintado color negro

Extremos rectificados

tolerancias de acuerdo a DIN 2095

Product Details
M99MC1156

Data sheet

FREE LENGTH
210
OUTSIDE DIAMETER
90
INSIDE DIAMETER
56
WIRE DIAMETER
17
ACTIVE COILS
8
TOTAL COILS
9.5
SPRING RATE (K)
29.70
RAW MATERIAL
51CrV4
ENDS
CLOSED & GROUND
SURFACE COATING
BLACK COLOUR PAINTED
SOLID LENGTH
161.5
LOAD LENGHT L1
185.75
LOAD AT L1
7202
PITCH
26.25
SPRING INDEX
4.29
