Muelle de carga pesada M99MC1477
  • Muelle de carga pesada M99MC1477

Muelle de carga pesada M99MC1477

M99MC1477
Rating
Muelle de carga pesada M99MC1477
€324.79
Maximum 8 working days
Quantity
This product is in stock

Compare



Download PDF
Description

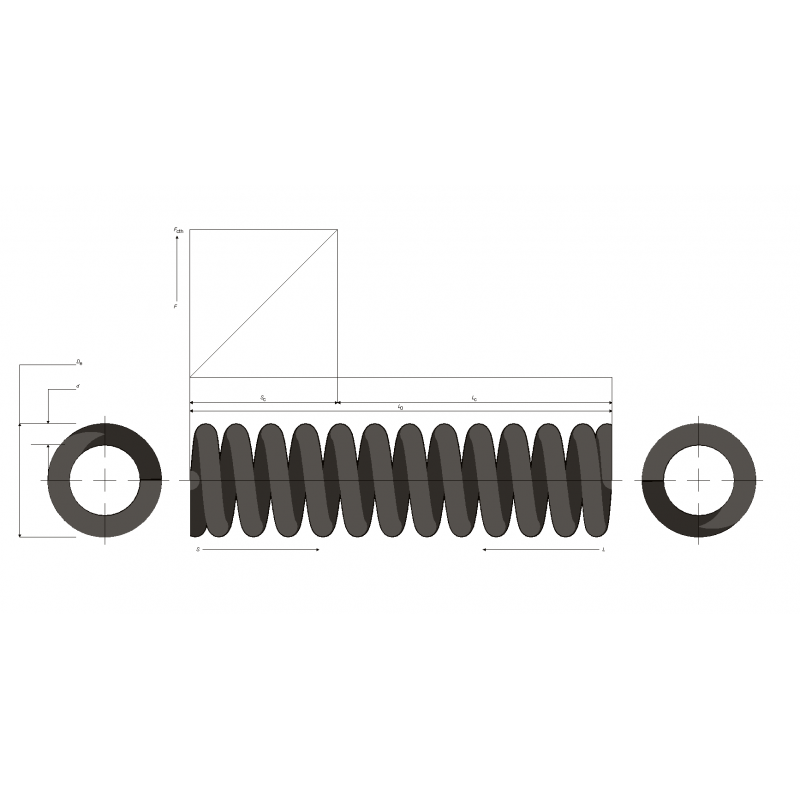

Muelle de carga pesada heavy spring

Material 51CrV4

Pintado color negro

Extremos rectificados

tolerancias de acuerdo a DIN 2095

Product Details
M99MC1477

Data sheet

FREE LENGTH
340
OUTSIDE DIAMETER
120
INSIDE DIAMETER
86
WIRE DIAMETER
17
ACTIVE COILS
13.5
TOTAL COILS
15
SPRING RATE (K)
6.10
RAW MATERIAL
51CrV4
ENDS
CLOSED & GROUND
SURFACE COATING
BLACK COLOUR PAINTED
SOLID LENGTH
255
LOAD LENGHT L1
297.5
LOAD AT L1
2592
PITCH
25.19
SPRING INDEX
6.06
