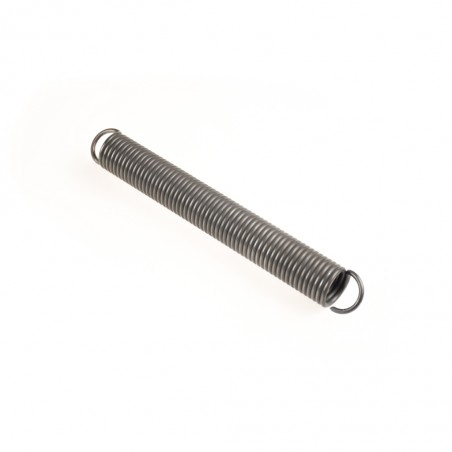

Extension spring M02LE3522

M02LE3522
Rating

Extension spring M02LE3522

€24.00
Maximum 8 working days
Quantity
This product is in stock

Compare



Download PDF
Description
  • Standard extension spring
  • Designed according to EN 13906-2: 2001
Product Details
M02LE3522

Data sheet

FREE LENGTH
200
OUTSIDE DIAMETER
25
WIRE DIAMETER
3
ACTIVE COILS
57
SPRING RATE (K)
1.4
RAW MATERIAL
EN 10270-1 SH
SURFACE COATING
NO PROTECTION
INITIAL TENSION
40
LOAD LENGHT L1
417
LOAD AT L1
335
Reviews

No customer reviews for the moment.

Write your review

Extension spring M02LE3522

Extension spring M02LE3522

Extension spring M02LE3522

Write your review
