DOUBLE TORSION SPRINGS
DOUBLE TORSION SPRINGS

DOUBLE TORSION SPRINGS

  • Double torsion springs acc./DIN 2089
  • Wire size from 0,20 mm. up to 5,00 mm.

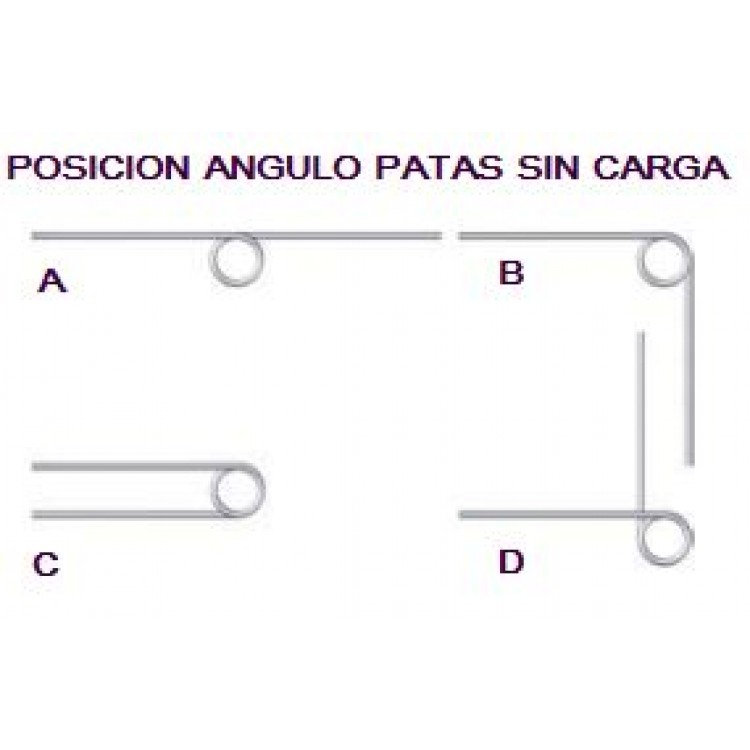

LEG POSITION UNLOADED SPANISH 750x750



(See on the above image the free angle position)



MUELLE DOBLE TORSION M07LE8530 Quick view

Reference: M07LE8530

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8530

FREE ANGLE POSITION: A
SKU: LEDT8530
LENGTH LEGS: 16
SHAFT DIAMETER: 2.5
FRAME LENGTH: 4
FRAME WIDTH: 4.5
LENGTH BETWEEN LEGS: 7
INSIDE DIAMETER: 3
WIRE DIAMETER: 0.4
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2
MAXIMUM PERMITTED TORQUE: 18.6
TORQUE ANGLE AT MN (Φ): 45
Price €17.82
More
MUELLE DOBLE TORSION M07LE8531 Quick view

Reference: M07LE8531

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8531

Location:
FREE ANGLE POSITION: B
SKU: LEDT8531
LENGTH LEGS: 16
SHAFT DIAMETER: 2.5
FRAME LENGTH: 4
FRAME WIDTH: 4.5
LENGTH BETWEEN LEGS: 7
INSIDE DIAMETER: 3
WIRE DIAMETER: 0.4
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2.25
MAXIMUM PERMITTED TORQUE: 18.6
TORQUE ANGLE AT MN (Φ): 51
Price €17.82
More
MUELLE DOBLE TORSION M07LE8532 Quick view

Reference: M07LE8532

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8532

Location:
FREE ANGLE POSITION: C
SKU: LEDT8532
LENGTH LEGS: 16
SHAFT DIAMETER: 2.5
FRAME LENGTH: 4
FRAME WIDTH: 4.5
LENGTH BETWEEN LEGS: 7
INSIDE DIAMETER: 3
WIRE DIAMETER: 0.4
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2.5
MAXIMUM PERMITTED TORQUE: 18.6
TORQUE ANGLE AT MN (Φ): 57
Price €17.82
More
MUELLE DOBLE TORSION M07LE8533 Quick view

Reference: M07LE8533

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8533

Location:
FREE ANGLE POSITION: D
SKU: LEDT8533
LENGTH LEGS: 16
SHAFT DIAMETER: 2.5
FRAME LENGTH: 4
FRAME WIDTH: 4.5
LENGTH BETWEEN LEGS: 7.5
INSIDE DIAMETER: 3
WIRE DIAMETER: 0.4
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2.75
MAXIMUM PERMITTED TORQUE: 18.6
TORQUE ANGLE AT MN (Φ): 62
Price €17.82
More
MUELLE DOBLE TORSION M07LE8534 Quick view

Reference: M07LE8534

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8534

FREE ANGLE POSITION: A
SKU: LEDT8534
LENGTH LEGS: 16
SHAFT DIAMETER: 2.5
FRAME LENGTH: 4
FRAME WIDTH: 4.5
LENGTH BETWEEN LEGS: 7.5
INSIDE DIAMETER: 3
WIRE DIAMETER: 0.4
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 3
MAXIMUM PERMITTED TORQUE: 18.6
TORQUE ANGLE AT MN (Φ): 68
Price €17.82
More
MUELLE DOBLE TORSION M07LE8535 Quick view

Reference: M07LE8535

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8535

Location:
FREE ANGLE POSITION: B
SKU: LEDT8535
LENGTH LEGS: 16
SHAFT DIAMETER: 2.5
FRAME LENGTH: 4
FRAME WIDTH: 4.5
LENGTH BETWEEN LEGS: 8.5
INSIDE DIAMETER: 3
WIRE DIAMETER: 0.4
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 4.25
MAXIMUM PERMITTED TORQUE: 18.6
TORQUE ANGLE AT MN (Φ): 96
Price €19.98
More
MUELLE DOBLE TORSION M07LE8536 Quick view

Reference: M07LE8536

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8536

FREE ANGLE POSITION: C
SKU: LEDT8536
LENGTH LEGS: 16
SHAFT DIAMETER: 2.5
FRAME LENGTH: 4
FRAME WIDTH: 4.5
LENGTH BETWEEN LEGS: 10.2
INSIDE DIAMETER: 3
WIRE DIAMETER: 0.4
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 6.5
MAXIMUM PERMITTED TORQUE: 18.6
TORQUE ANGLE AT MN (Φ): 147
Price €19.98
More
MUELLE DOBLE TORSION M07LE8537 Quick view

Reference: M07LE8537

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8537

Location:
FREE ANGLE POSITION: A
SKU: LEDT8537
LENGTH LEGS: 20
SHAFT DIAMETER: 3
FRAME LENGTH: 5
FRAME WIDTH: 5.5
LENGTH BETWEEN LEGS: 8.5
INSIDE DIAMETER: 3.5
WIRE DIAMETER: 0.5
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2
MAXIMUM PERMITTED TORQUE: 33.4
TORQUE ANGLE AT MN (Φ): 40
Price €17.82
More
MUELLE DOBLE TORSION M07LE8538 Quick view

Reference: M07LE8538

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8538

Location:
FREE ANGLE POSITION: B
SKU: LEDT8538
LENGTH LEGS: 20
SHAFT DIAMETER: 3
FRAME LENGTH: 5
FRAME WIDTH: 5.5
LENGTH BETWEEN LEGS: 8.5
INSIDE DIAMETER: 3.5
WIRE DIAMETER: 0.5
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2.25
MAXIMUM PERMITTED TORQUE: 33.4
TORQUE ANGLE AT MN (Φ): 45
Price €17.82
More
MUELLE DOBLE TORSION M07LE8539 Quick view

Reference: M07LE8539

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8539

Location:
FREE ANGLE POSITION: C
SKU: LEDT8539
LENGTH LEGS: 20
SHAFT DIAMETER: 3
FRAME LENGTH: 5
FRAME WIDTH: 5.5
LENGTH BETWEEN LEGS: 8.5
INSIDE DIAMETER: 3.5
WIRE DIAMETER: 0.5
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2.5
MAXIMUM PERMITTED TORQUE: 33.4
TORQUE ANGLE AT MN (Φ): 50
Price €17.82
More
MUELLE DOBLE TORSION M07LE8540 Quick view

Reference: M07LE8540

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8540

FREE ANGLE POSITION: D
SKU: LEDT8540
LENGTH LEGS: 20
SHAFT DIAMETER: 3
FRAME LENGTH: 5
FRAME WIDTH: 5.5
LENGTH BETWEEN LEGS: 9.5
INSIDE DIAMETER: 3.5
WIRE DIAMETER: 0.5
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2.75
MAXIMUM PERMITTED TORQUE: 33.4
TORQUE ANGLE AT MN (Φ): 55
Price €17.82
More
MUELLE DOBLE TORSION M07LE8541 Quick view

Reference: M07LE8541

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8541

Location:
FREE ANGLE POSITION: A
SKU: LEDT8541
LENGTH LEGS: 20
SHAFT DIAMETER: 3
FRAME LENGTH: 5
FRAME WIDTH: 5.5
LENGTH BETWEEN LEGS: 9.5
INSIDE DIAMETER: 3.5
WIRE DIAMETER: 0.5
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 3
MAXIMUM PERMITTED TORQUE: 33.4
TORQUE ANGLE AT MN (Φ): 60
Price €17.82
More
MUELLE DOBLE TORSION M07LE8542 Quick view

Reference: M07LE8542

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8542

Location:
FREE ANGLE POSITION: B
SKU: LEDT8542
LENGTH LEGS: 20
SHAFT DIAMETER: 3
FRAME LENGTH: 5
FRAME WIDTH: 5.5
LENGTH BETWEEN LEGS: 10.5
INSIDE DIAMETER: 3.5
WIRE DIAMETER: 0.5
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 4.25
MAXIMUM PERMITTED TORQUE: 33.4
TORQUE ANGLE AT MN (Φ): 86
Price €19.98
More
MUELLE DOBLE TORSION M07LE8543 Quick view

Reference: M07LE8543

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8543

Location:
FREE ANGLE POSITION: C
SKU: LEDT8543
LENGTH LEGS: 20
SHAFT DIAMETER: 3
FRAME LENGTH: 5
FRAME WIDTH: 5.5
LENGTH BETWEEN LEGS: 12.5
INSIDE DIAMETER: 3.5
WIRE DIAMETER: 0.5
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 6.5
MAXIMUM PERMITTED TORQUE: 33.4
TORQUE ANGLE AT MN (Φ): 131
Price €19.98
More
MUELLE DOBLE TORSION M07LE8544 Quick view

Reference: M07LE8544

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8544

Location:
FREE ANGLE POSITION: A
SKU: LEDT8544
LENGTH LEGS: 22
SHAFT DIAMETER: 4
FRAME LENGTH: 7
FRAME WIDTH: 6.5
LENGTH BETWEEN LEGS: 10.1
INSIDE DIAMETER: 5
WIRE DIAMETER: 0.6
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2
MAXIMUM PERMITTED TORQUE: 59.6
TORQUE ANGLE AT MN (Φ): 46
Price €17.82
More
MUELLE DOBLE TORSION M07LE8545 Quick view

Reference: M07LE8545

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8545

Location:
FREE ANGLE POSITION: B
SKU: LEDT8545
LENGTH LEGS: 22
SHAFT DIAMETER: 4
FRAME LENGTH: 7
FRAME WIDTH: 6.5
LENGTH BETWEEN LEGS: 10.1
INSIDE DIAMETER: 5
WIRE DIAMETER: 0.6
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2.25
MAXIMUM PERMITTED TORQUE: 59.6
TORQUE ANGLE AT MN (Φ): 52
Price €17.82
More
MUELLE DOBLE TORSION M07LE8546 Quick view

Reference: M07LE8546

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8546

Location:
FREE ANGLE POSITION: C
SKU: LEDT8546
LENGTH LEGS: 22
SHAFT DIAMETER: 4
FRAME LENGTH: 7
FRAME WIDTH: 6.5
LENGTH BETWEEN LEGS: 10.1
INSIDE DIAMETER: 5
WIRE DIAMETER: 0.6
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2.5
MAXIMUM PERMITTED TORQUE: 59.6
TORQUE ANGLE AT MN (Φ): 58
Price €17.82
More
MUELLE DOBLE TORSION M07LE8547 Quick view

Reference: M07LE8547

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8547

Location:
FREE ANGLE POSITION: D
SKU: LEDT8547
LENGTH LEGS: 22
SHAFT DIAMETER: 4
FRAME LENGTH: 7
FRAME WIDTH: 6.5
LENGTH BETWEEN LEGS: 11.3
INSIDE DIAMETER: 5
WIRE DIAMETER: 0.6
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2.75
MAXIMUM PERMITTED TORQUE: 59.6
TORQUE ANGLE AT MN (Φ): 64
Price €17.82
More
MUELLE DOBLE TORSION M07LE8548 Quick view

Reference: M07LE8548

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8548

Location:
FREE ANGLE POSITION: A
SKU: LEDT8548
LENGTH LEGS: 22
SHAFT DIAMETER: 4
FRAME LENGTH: 7
FRAME WIDTH: 6.5
LENGTH BETWEEN LEGS: 11.3
INSIDE DIAMETER: 5
WIRE DIAMETER: 0.6
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 3
MAXIMUM PERMITTED TORQUE: 59.6
TORQUE ANGLE AT MN (Φ): 70
Price €17.82
More
MUELLE DOBLE TORSION M07LE8549 Quick view

Reference: M07LE8549

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8549

Location:
FREE ANGLE POSITION: B
SKU: LEDT8549
LENGTH LEGS: 22
SHAFT DIAMETER: 4
FRAME LENGTH: 7
FRAME WIDTH: 6.5
LENGTH BETWEEN LEGS: 12.5
INSIDE DIAMETER: 5
WIRE DIAMETER: 0.6
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 4.25
MAXIMUM PERMITTED TORQUE: 59.6
TORQUE ANGLE AT MN (Φ): 99
Price €19.98
More
MUELLE DOBLE TORSION M07LE8550 Quick view

Reference: M07LE8550

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8550

Location:
FREE ANGLE POSITION: C
SKU: LEDT8550
LENGTH LEGS: 22
SHAFT DIAMETER: 4
FRAME LENGTH: 7
FRAME WIDTH: 6.5
LENGTH BETWEEN LEGS: 15
INSIDE DIAMETER: 5
WIRE DIAMETER: 0.6
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 6.5
MAXIMUM PERMITTED TORQUE: 59.6
TORQUE ANGLE AT MN (Φ): 151
Price €19.98
More
MUELLE DOBLE TORSION M07LE8551 Quick view

Reference: M07LE8551

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8551

Location:
FREE ANGLE POSITION: A
SKU: LEDT8551
LENGTH LEGS: 25
SHAFT DIAMETER: 5
FRAME LENGTH: 8
FRAME WIDTH: 7.5
LENGTH BETWEEN LEGS: 12
INSIDE DIAMETER: 6
WIRE DIAMETER: 0.75
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2
MAXIMUM PERMITTED TORQUE: 110
TORQUE ANGLE AT MN (Φ): 44
Price €18.98
More
MUELLE DOBLE TORSION M07LE8552 Quick view

Reference: M07LE8552

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8552

Location:
FREE ANGLE POSITION: B
SKU: LEDT8552
LENGTH LEGS: 25
SHAFT DIAMETER: 5
FRAME LENGTH: 8
FRAME WIDTH: 7.5
LENGTH BETWEEN LEGS: 12
INSIDE DIAMETER: 6
WIRE DIAMETER: 0.75
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2.25
MAXIMUM PERMITTED TORQUE: 110
TORQUE ANGLE AT MN (Φ): 50
Price €18.98
More
MUELLE DOBLE TORSION M07LE8553 Quick view

Reference: M07LE8553

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8553

Location:
FREE ANGLE POSITION: C
SKU: LEDT8553
LENGTH LEGS: 25
SHAFT DIAMETER: 5
FRAME LENGTH: 8
FRAME WIDTH: 7.5
LENGTH BETWEEN LEGS: 12
INSIDE DIAMETER: 6
WIRE DIAMETER: 0.75
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2.5
MAXIMUM PERMITTED TORQUE: 110
TORQUE ANGLE AT MN (Φ): 55
Price €18.98
More
MUELLE DOBLE TORSION M07LE8554 Quick view

Reference: M07LE8554

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8554

Location:
FREE ANGLE POSITION: D
SKU: LEDT8554
LENGTH LEGS: 25
SHAFT DIAMETER: 5
FRAME LENGTH: 8
FRAME WIDTH: 7.5
LENGTH BETWEEN LEGS: 13.5
INSIDE DIAMETER: 6
WIRE DIAMETER: 0.75
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2.75
MAXIMUM PERMITTED TORQUE: 110
TORQUE ANGLE AT MN (Φ): 61
Price €18.98
More
MUELLE DOBLE TORSION M07LE8555 Quick view

Reference: M07LE8555

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8555

Location:
FREE ANGLE POSITION: A
SKU: LEDT8555
LENGTH LEGS: 25
SHAFT DIAMETER: 5
FRAME LENGTH: 8
FRAME WIDTH: 7.5
LENGTH BETWEEN LEGS: 13.5
INSIDE DIAMETER: 6
WIRE DIAMETER: 0.75
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 3
MAXIMUM PERMITTED TORQUE: 110
TORQUE ANGLE AT MN (Φ): 66
Price €18.98
More
MUELLE DOBLE TORSION M07LE8556 Quick view

Reference: M07LE8556

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8556

Location:
FREE ANGLE POSITION: B
SKU: LEDT8556
LENGTH LEGS: 25
SHAFT DIAMETER: 5
FRAME LENGTH: 8
FRAME WIDTH: 7.5
LENGTH BETWEEN LEGS: 15
INSIDE DIAMETER: 6
WIRE DIAMETER: 0.75
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 4.25
MAXIMUM PERMITTED TORQUE: 110
TORQUE ANGLE AT MN (Φ): 94
Price €21.10
More
MUELLE DOBLE TORSION M07LE8557 Quick view

Reference: M07LE8557

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8557

Location:
FREE ANGLE POSITION: C
SKU: LEDT8557
LENGTH LEGS: 25
SHAFT DIAMETER: 5
FRAME LENGTH: 8
FRAME WIDTH: 7.5
LENGTH BETWEEN LEGS: 17.5
INSIDE DIAMETER: 6
WIRE DIAMETER: 0.75
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 6.5
MAXIMUM PERMITTED TORQUE: 110
TORQUE ANGLE AT MN (Φ): 143
Price €21.10
More
MUELLE DOBLE TORSION M07LE8558 Quick view

Reference: M07LE8558

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8558

Location:
FREE ANGLE POSITION: A
SKU: LEDT8558
LENGTH LEGS: 35
SHAFT DIAMETER: 6
FRAME LENGTH: 10
FRAME WIDTH: 8.5
LENGTH BETWEEN LEGS: 14.5
INSIDE DIAMETER: 7
WIRE DIAMETER: 1
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2
MAXIMUM PERMITTED TORQUE: 254
TORQUE ANGLE AT MN (Φ): 38
Price €23.38
More
MUELLE DOBLE TORSION M07LE8559 Quick view

Reference: M07LE8559

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8559

Location:
FREE ANGLE POSITION: B
SKU: LEDT8559
LENGTH LEGS: 35
SHAFT DIAMETER: 6
FRAME LENGTH: 10
FRAME WIDTH: 8.5
LENGTH BETWEEN LEGS: 14.5
INSIDE DIAMETER: 7
WIRE DIAMETER: 1
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2.25
MAXIMUM PERMITTED TORQUE: 254
TORQUE ANGLE AT MN (Φ): 43
Price €23.38
More
MUELLE DOBLE TORSION M07LE8560 Quick view

Reference: M07LE8560

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8560

Location:
FREE ANGLE POSITION: C
SKU: LEDT8560
LENGTH LEGS: 35
SHAFT DIAMETER: 6
FRAME LENGTH: 10
FRAME WIDTH: 8.5
LENGTH BETWEEN LEGS: 14.5
INSIDE DIAMETER: 7
WIRE DIAMETER: 1
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2.5
MAXIMUM PERMITTED TORQUE: 254
TORQUE ANGLE AT MN (Φ): 48
Price €23.38
More
MUELLE DOBLE TORSION M07LE8561 Quick view

Reference: M07LE8561

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8561

Location:
FREE ANGLE POSITION: D
SKU: LEDT8561
LENGTH LEGS: 35
SHAFT DIAMETER: 6
FRAME LENGTH: 10
FRAME WIDTH: 8.5
LENGTH BETWEEN LEGS: 16.5
INSIDE DIAMETER: 7
WIRE DIAMETER: 1
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2.75
MAXIMUM PERMITTED TORQUE: 254
TORQUE ANGLE AT MN (Φ): 52
Price €23.38
More
MUELLE DOBLE TORSION M07LE8562 Quick view

Reference: M07LE8562

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8562

Location:
FREE ANGLE POSITION: A
SKU: LEDT8562
LENGTH LEGS: 35
SHAFT DIAMETER: 6
FRAME LENGTH: 10
FRAME WIDTH: 8.5
LENGTH BETWEEN LEGS: 16.5
INSIDE DIAMETER: 7
WIRE DIAMETER: 1
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 3
MAXIMUM PERMITTED TORQUE: 254
TORQUE ANGLE AT MN (Φ): 57
Price €23.38
More
MUELLE DOBLE TORSION M07LE8563 Quick view

Reference: M07LE8563

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8563

Location:
FREE ANGLE POSITION: B
SKU: LEDT8563
LENGTH LEGS: 35
SHAFT DIAMETER: 6
FRAME LENGTH: 10
FRAME WIDTH: 8.5
LENGTH BETWEEN LEGS: 18.5
INSIDE DIAMETER: 7
WIRE DIAMETER: 1
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 4.25
MAXIMUM PERMITTED TORQUE: 254
TORQUE ANGLE AT MN (Φ): 81
Price €25.50
More
MUELLE DOBLE TORSION M07LE8564 Quick view

Reference: M07LE8564

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8564

Location:
FREE ANGLE POSITION: C
SKU: LEDT8564
LENGTH LEGS: 35
SHAFT DIAMETER: 6
FRAME LENGTH: 10
FRAME WIDTH: 8.5
LENGTH BETWEEN LEGS: 22.5
INSIDE DIAMETER: 7
WIRE DIAMETER: 1
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 6.5
MAXIMUM PERMITTED TORQUE: 254
TORQUE ANGLE AT MN (Φ): 124
Price €25.50
More
MUELLE DOBLE TORSION M07LE8565 Quick view

Reference: M07LE8565

Double torsion spring according to DIN 2089

Muelle de doble torsion LEDT8565

Location:
FREE ANGLE POSITION: A
SKU: LEDT8565
LENGTH LEGS: 40
SHAFT DIAMETER: 8
FRAME LENGTH: 12
FRAME WIDTH: 11
LENGTH BETWEEN LEGS: 18.5
INSIDE DIAMETER: 9
WIRE DIAMETER: 1.25
RAW MATERIAL: EN 10270-3 1.4310
COILS ON EACH BODY: 2
MAXIMUM PERMITTED TORQUE: 476
TORQUE ANGLE AT MN (Φ): 38
Price €26.76
More
Back to top

We use third-party cookies to enhance your browsing experience, analyze site traffic and personalize content, ads. Learn more.

Allow cookies Not accept
