Muelle compresión cónico 3070128
  • Muelle compresión cónico 3070128

Conical compression spring M03MC3070128

M03MC3070128

Conical compression spring 3070128

€4.84
VAT not included Maximum 8 working days
Quantity
This product is in stock

Compare



Download PDF
Description

Conical compression spring helicoidal

Made of round wire

Raw material Cold coiled

Made in Spain

Product Details
M03MC3070128

Data sheet

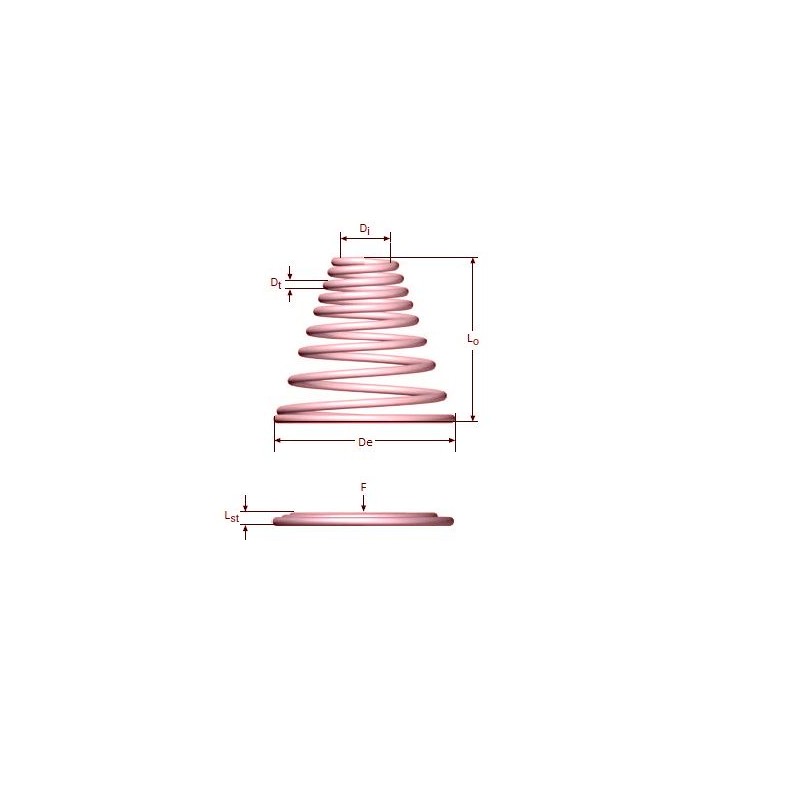

MAJOR OUTSIDE DIAMETER
8
MINOR INSIDE DIAMETER
4.9
FREE LENGTH
11
WIRE DIAMETER
0.55
TOTAL COILS
7.7
RAW MATERIAL
EN 10270-1 SH
SURFACE COATING
NO PROTECTION
SOLID LENGTH
5.6
SOLID LOAD
3
4 other products in the same category:
Muelle compresión cónico 3070128 Quick view

Reference: M03MCPF3171

Conical compression spring M03MCPF3171

Conical compression spring M03MCPF3171

MAJOR OUTSIDE DIAMETER: 30
MINOR INSIDE DIAMETER: 17
FREE LENGTH: 18.5
WIRE DIAMETER: 2
TOTAL COILS: 3.5
RAW MATERIAL: EN 10270-3 1.4310
SURFACE COATING: STAINLESS STEEL
SOLID LENGTH: 6
SOLID LOAD: 156
Price €6.66
More
Muelle compresión cónico 3070128 Quick view

Reference: M03MC5600001

Conical compression spring M03MC5600001

Conical compression spring M03MC5600001

MAJOR OUTSIDE DIAMETER:
MINOR INSIDE DIAMETER:
FREE LENGTH: 17
WIRE DIAMETER: 0.8
TOTAL COILS: 8.00
RAW MATERIAL: EN 10270-3 1.4310
SOLID LENGTH: 9.30
SOLID LOAD:
Price €8.00
More
Muelle compresión cónico 3070128 Quick view

Reference: M03MC7520012

Conical compression spring M03MC7520012

Conical compression spring M03MC7520012

MAJOR OUTSIDE DIAMETER: 12
MINOR INSIDE DIAMETER: 8.3
FREE LENGTH: 16.5
WIRE DIAMETER: 0.75
TOTAL COILS: 7.7
RAW MATERIAL: EN 10270-3 1.4310
SURFACE COATING: STAINLESS STEEL
SOLID LENGTH: 5.95
SOLID LOAD: 6.83
Price €4.84
More
Muelle compresión cónico M03LE6735 Quick view

Reference: M03MC3040135

Conical compression spring M03MC3040135

Conical compression spring

MAJOR OUTSIDE DIAMETER: 34.5
MINOR INSIDE DIAMETER: 24.5
FREE LENGTH: 35
WIRE DIAMETER: 1.5
TOTAL COILS: 3.5
RAW MATERIAL: EN 10270-1 SH
SURFACE COATING: NO PROTECTION
SOLID LENGTH: 1.5
SOLID LOAD: 2.9
Price €3.63
More
