Extension spring M02MC2000007

M02MC2000007

Extension spring M02MC2000007

Volume discounts

Quantity Unit discount You Save
20 €0.20 Up to €4.00
30 €0.40 Up to €12.00
40 €0.60 Up to €24.00
50 €0.80 Up to €40.00
80 €1.80 Up to €144.00
100 €1.80 Up to €180.00
€3.00
VAT not included Maximum 8 working days
Quantity
This product is in stock

Compare



Download PDF
We deliver our products to European Union countries. To get 0% VAT for intra-community transaction provide us your valid EU VAT number
Description
  • Standard extension spring
  • Designed according to EN 13906-2: 2001
Product Details
M02MC2000007

Data sheet

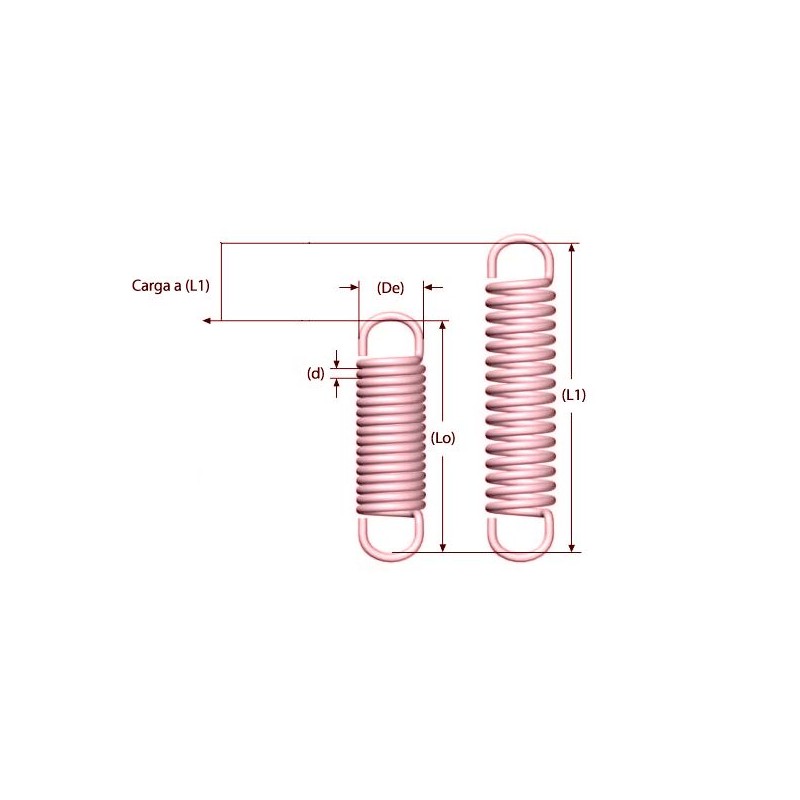

FREE LENGTH
64.4
OUTSIDE DIAMETER
19.25
WIRE DIAMETER
2
ACTIVE COILS
15.75
SPRING RATE (K)
2.57
RAW MATERIAL
EN 10270-1 SH
SURFACE COATING
NO PROTECTION
INITIAL TENSION
4
LOAD LENGHT L1
94.2
LOAD AT L1
53
4 other products in the same category:
Tension spring M02MCPF4918 DIN2089/0.7*6.8/52.8 Quick view

Reference: M02MCPF4918

Tension spring M02MCPF4918 DIN2089/0.7*6.8/52.8

Tension spring M02MCPF4918 DIN2089/0.7*6.8/52.8

FREE LENGTH: 52.8
OUTSIDE DIAMETER: 6.8
WIRE DIAMETER: 0.7
ACTIVE COILS: 58.5
SPRING RATE (K): 0.184
RAW MATERIAL: EN 10270-1 SH
SURFACE COATING: NO PROTECTION
INITIAL TENSION: 2
LOAD LENGHT L1: 99
LOAD AT L1: 10.51
Price €4.00
More
Muelle traccion- Tension spring - Springmakers.net Quick view

Reference: M02MC2310070

Tension spring M02MC2310070

Tension spring M02MC2310070

FREE LENGTH: 20
OUTSIDE DIAMETER: 7
WIRE DIAMETER: 0.6
ACTIVE COILS: 14.25
SPRING RATE (K): 0.31
RAW MATERIAL: EN 10270-3 1.4310
SURFACE COATING: NO PROTECTION
INITIAL TENSION: 5
LOAD LENGHT L1: 75
LOAD AT L1: 68
Price €3.00
More
Tension spring M02MCPF4920... Quick view

Reference: M02MCPF4920

Tension spring M02MCPF4920 DIN2089/1.2*7.3/290

Tension spring M02MCPF4920 DIN2089/1.2*7.3/290

FREE LENGTH: 290
OUTSIDE DIAMETER: 7.3
WIRE DIAMETER: 1.2
ACTIVE COILS: 233
SPRING RATE (K): 0.399
RAW MATERIAL: EN 10270-1 SH
SURFACE COATING: NO PROTECTION
INITIAL TENSION: 8
LOAD LENGHT L1: 400
LOAD AT L1: 51.94
Price €11.00
More
Tension spring M02MC0900034 Quick view

Reference: M02MC0900034

Tension spring M02MC0900034

Tension spring M02MC0900034

LOOPS TYPE: OFF SIDE LOOPS
FREE LENGTH: 24
OUTSIDE DIAMETER: 5.3
WIRE DIAMETER: 0.6
ACTIVE COILS: 25
SPRING RATE (K): 0.512
RAW MATERIAL: EN 10270-1 SH
SURFACE COATING: NO PROTECTION
INITIAL TENSION: 3
LOAD LENGHT L1: 28
LOAD AT L1: 5.1
Price €2.80
More
