Tension spring M02MC1540001

M02MC1540001

Tension spring M02MC1540001

€3.00
VAT not included Maximum 8 working days
Quantity
This product is in stock

Compare



Download PDF
We deliver our products to European Union countries. To get 0% VAT for intra-community transaction provide us your valid EU VAT number
Description

Standard extension spring

Designed according to EN 13906-2: 2001

Made in Spain

Product Details
M02MC1540001

Data sheet

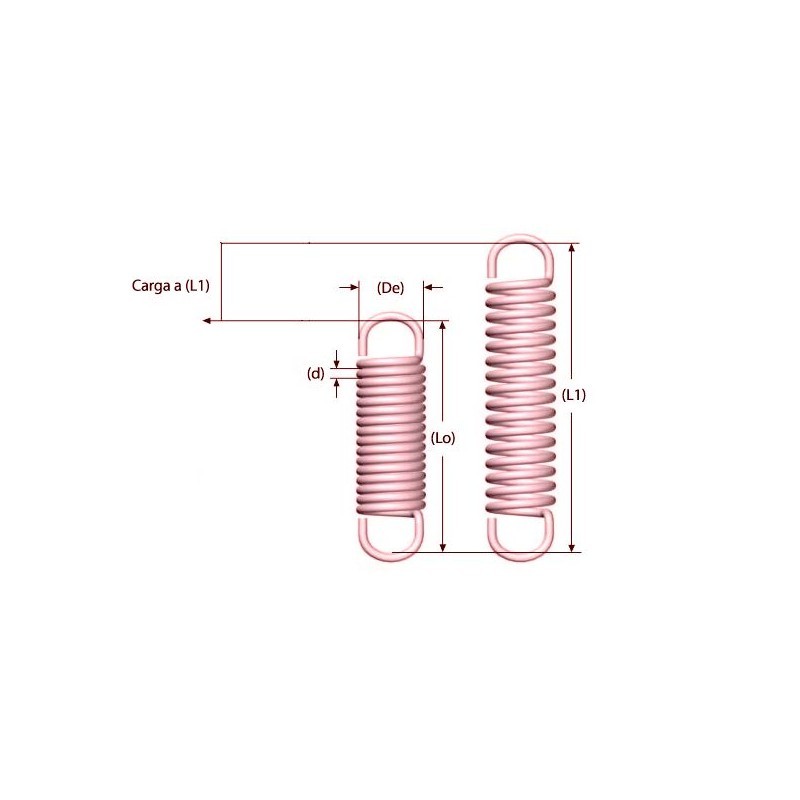

FREE LENGTH
20.5
OUTSIDE DIAMETER
5
WIRE DIAMETER
0.5
ACTIVE COILS
25
SPRING RATE (K)
0.116
RAW MATERIAL
EN 10270-1 SH
SURFACE COATING
NO PROTECTION
INITIAL TENSION
1
LOAD LENGHT L1
30
LOAD AT L1
3.6
