DIE SPRINGS JIS B5012 LIGHTEST LOAD TF60x60

TF60x60

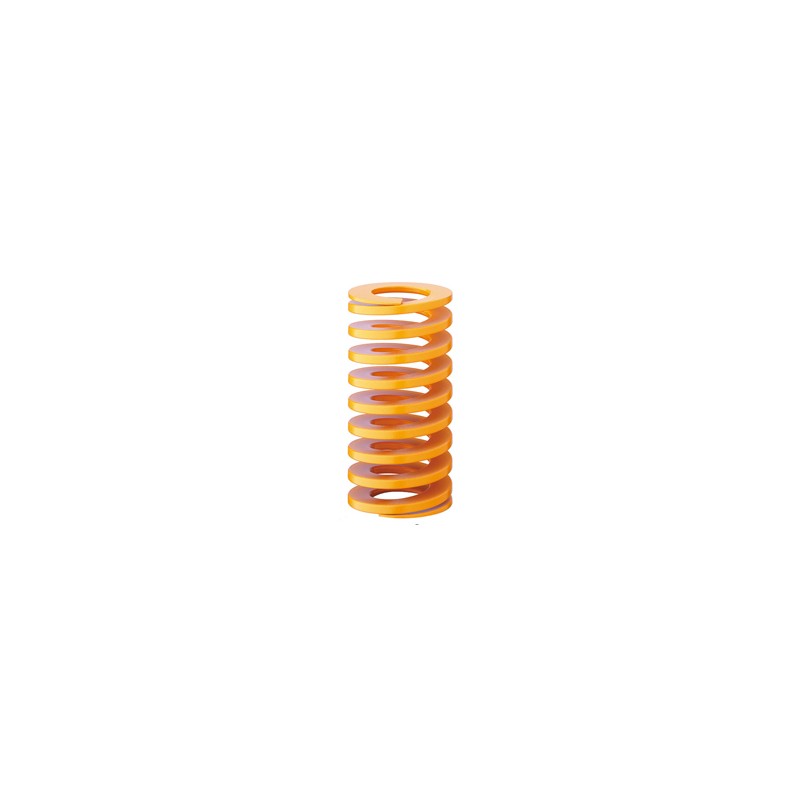

Die springs JIS B5012 lightest load yellow colour
€85.68
VAT not included Maximum 8 working days
Quantity
This product is in stock

The minimum purchase order quantity for the product is 7.

Compare



Download PDF
Description

Die springs acc/JIS B5012

TOHATSU Springs

Electrophoretic coating Color yellow

Cycle guarantee at 40% deflection: 1,000,000

Temperature range -30ºC to 150ºC

All measurements are in mm. N. and N/mm.

Product Details
TF60x60

Data sheet

STROKE 40%
24.0
FORCE AT 40%
2260
FREE LENGTH
60
OUTSIDE DIAMETER
60
INSIDE DIAMETER
33
SPRING RATE (K)
94.07
STROKE 45%
27.0
STROKE 50%
30.0
FORCE AT 45%
2540
FORCE AT 50%
2820
