MUELLE MATRICERIA JIS B5012 CARGA MEDIA TM27x70
  • MUELLE MATRICERIA JIS B5012 CARGA MEDIA TM27x70

DIE SPRING JIS B5012 MEDIUM LOAD TM27x70

TM27x70

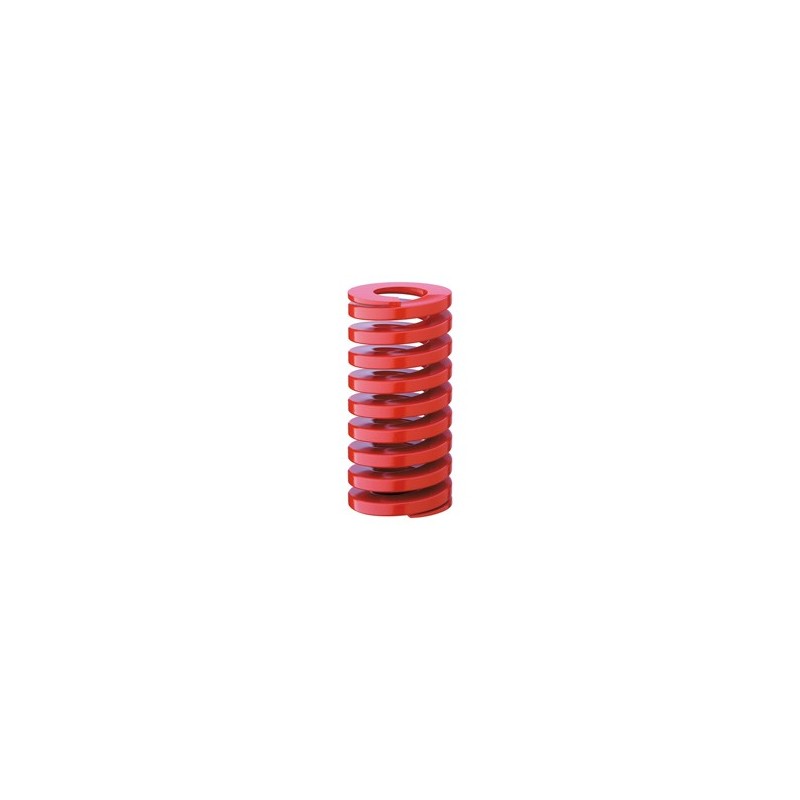

Die spring JIS B5012 medium load red colour
€91.01
VAT not included Maximum 8 working days
Quantity
This product is in stock

The minimum purchase order quantity for the product is 19.

Compare



Download PDF
Description

Die springs acc/JIS B5012

TOHATSU Springs

Electrophoretic coating Color yellow

Cycle guarantee at 25.6 % deflection: 1,000,000

Temperature range -30ºC to 150ºC

All measurements are in mm. N. and N/mm.

Product Details
TM27x70

Data sheet

FREE LENGTH
70
OUTSIDE DIAMETER
27
INSIDE DIAMETER
13.5
SPRING RATE (K)
63.74
STROKE 32%
22.4
FORCE AT 32%
1432
STROKE 25.6%
17.9
FORCE AT 25.6%
1147
STROKE 28.8%
20.2
FORCE AT 28.8%
1285
