Muelle de fuerza constante M14LE8043
  • Muelle de fuerza constante M14LE8043
  • Muelle de fuerza constante M14LE8043
  • Muelle de fuerza constante M14LE8043

Constant force spring M14LE8043

M14LE8043
Constant force spring M14LE8043
€16.90
VAT not included Maximum 8 working days
Quantity
This product is in stock

Compare



Download PDF
We deliver our products to European Union countries. To get 0% VAT for intra-community transaction provide us your valid EU VAT number
Description

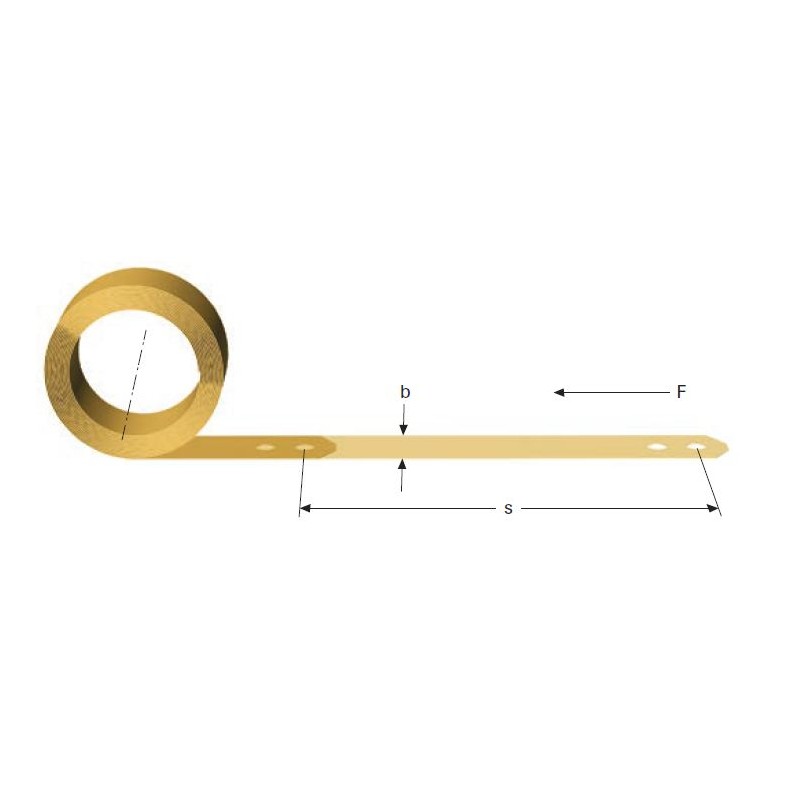

Constant force spring

Product Details
M14LE8043

Data sheet

THICKNESS
0.127
MATERIAL LENGTH DEVELOPMENT
508
RAW MATERIAL
EN 10270-3 1.4310
FORCE
4.7
BAND WIDTH
12.7
INSIDE DIAMETER WITHOUT BEARING
12.06
OUTSIDE DIAMETER WITHOUT BEARING
15.42
OUTSIDE DIAMETER WITH BEARING
17.3
OUTSIDE DIAMETER WITH BEARING
14.5
HOLE TYPE
D
DISPLACEMENT
422
