Torsion spring acc/DIN 2089 M06PF2553

M06PF2553

Torsion spring acc/DIN 2089 M06PF2553

€77.44
VAT not included Maximum 8 working days
Quantity
This product is in stock

Compare



Download PDF
Description
  • Torsion spring acc/DIN 2089
  • Raw material: Stainless steel EN 10270-3-1.4310
  • All measures are in mm. N. y N/mm.
Product Details
M06PF2553

Data sheet

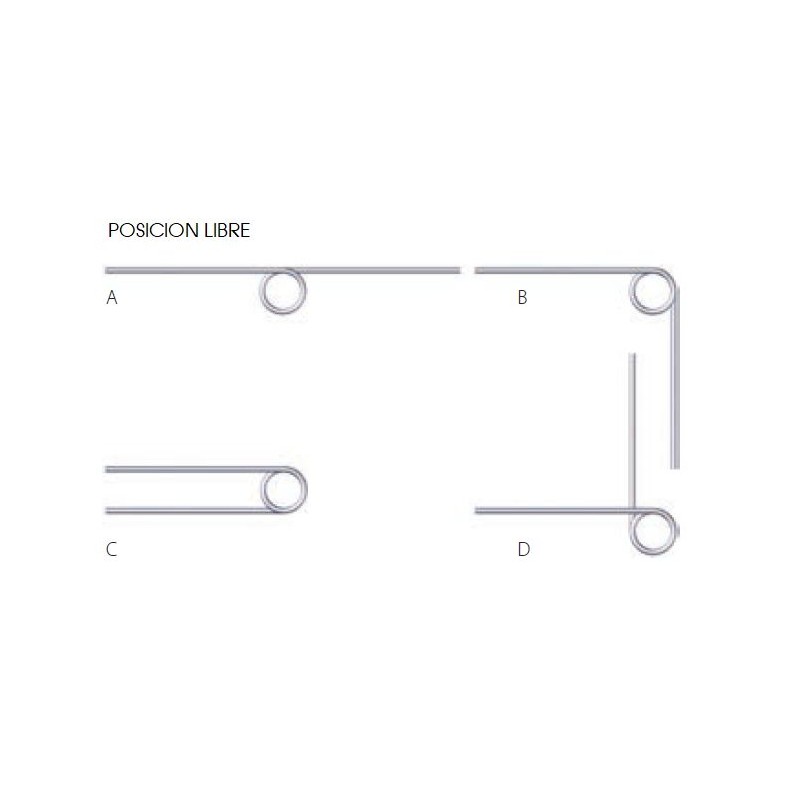

FREE ANGLE POSITION
A
COIL WINDING DIRECTION
MANO IZQUIERDA
INSIDE DIAMETER
31
WIRE DIAMETER
6
RAW MATERIAL
EN 10270-1 SH
3 other products in the same category:
Muelle torsion s/DIN 2089 M06LE7000 Quick view

Reference: M06MC5590001

Torsion spring acc/DIN 2089 M06MC5590001

Torsion spring acc/DIN 2089 M06MC5590001

FREE ANGLE POSITION: A
SHAFT DIAMETER: 4
COIL WINDING DIRECTION: MANO IZQUIERDA
LEGS LENGTH: 8
BODY LENGTH: 14
INSIDE DIAMETER: 6.5
WIRE DIAMETER: 1.1
SPRING RATE (K): 0.964
RAW MATERIAL: EN 10270-1 SH
TORQUE ANGLE AT MN (Φ): 118
NUMBER OF COILS: 11
MAXIMUM ALLOWED TORQUE MOMENT IN Nmm:
Price €8.00
More
-10% -10% Muelle torsion s/DIN 2089 M06LE7000 Quick view

Reference: M06MC1244001

Torsion spring acc/DIN 2089 M06MC1244001

Torsion spring acc/DIN 2089 M06MC1244001

FREE ANGLE POSITION: B
SHAFT DIAMETER: 4
COIL WINDING DIRECTION: RIGHT HAND
LEGS LENGTH: 10.5
BODY LENGTH: 2.5
INSIDE DIAMETER: 5.8
WIRE DIAMETER: 0.65
SPRING RATE (K): 0.409
RAW MATERIAL: EN 10270-3 1.4310
TORQUE ANGLE AT MN (Φ): 180
NUMBER OF COILS: 3.25
MAXIMUM ALLOWED TORQUE MOMENT IN Nmm: 36.84
Price €5.12 Regular price €5.69
More
-10% -10% Muelle torsion s/DIN 2089 M06LE7000 Quick view

Reference: M06MC1244002

Torsion spring acc/DIN 2089 M06MC1244002

Torsion spring acc/DIN 2089 M06MC1244002

FREE ANGLE POSITION: B
SHAFT DIAMETER: 2.5
COIL WINDING DIRECTION: RIGHT HAND
LEGS LENGTH: 12
BODY LENGTH: 2
INSIDE DIAMETER: 3.98
WIRE DIAMETER: 0.60
SPRING RATE (K): 0.536
RAW MATERIAL: EN 10270-3 1.4310
TORQUE ANGLE AT MN (Φ): 180
NUMBER OF COILS: 2.25
MAXIMUM ALLOWED TORQUE MOMENT IN Nmm: 48.26
Price €5.12 Regular price €5.69
More
