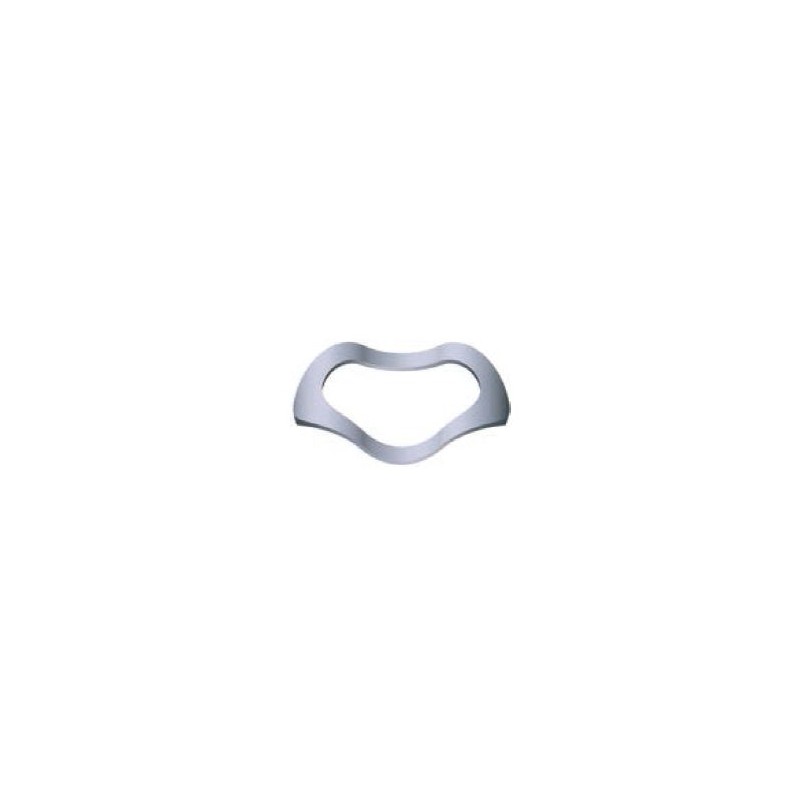

WAVE SPRING WASHER M10LE4805

Reference M10LE4805

Brand MUELLES CROM

€44.00

VAT not included

Quantity

Out-of-Stock

Compare

Download PDF

We deliver our products to European Union countries. To get 0% VAT for intra-community transaction provide us your valid EU VAT number

Description
Product Details

Description

WAVE SPRING WASHER
Raw material : CK67

Product Details

Reference M10LE4805

Condition New

Data sheet

THICKNESS: 0.8
NUMBER OF WAVES: 3
FREE LENGTH: 9.5
OUTSIDE DIAMETER: 114.5
INSIDE DIAMETER: 95.5
SPRING RATE (K): 35
RAW MATERIAL: CK67
LOAD AT L1: 280
LOADED LENGTH: 1.5
