Compression spring M01MCPF5139 TITANIUM GR5

Reference M01MCPF5139

Brand MUELLES CROM

Compression spring M01MCPF5139

Volume discounts

Quantity	Unit discount	You Save
10	10%	Up to €12.10
20	13%	Up to €31.46
30	18%	Up to €65.34
50	21%	Up to €127.05

€121.00

€108.90 Save 10%

VAT not included Maximum 8 working days

Quantity

This product is in stock

The minimum purchase order quantity for the product is 10.

Compare

Download PDF

We deliver our products to European Union countries. To get 0% VAT for intra-community transaction provide us your valid EU VAT number

Description
Product Details

Description

Compression spring S/DIN 2095
Designed according to EN 13906-1: 2002
Made in Europe
Compression spring
Springs in permanent stock
See our catalog of compression springs
It is a compression spring since its length at rest is greater than the working length
The force is effected in the direction of its axis
Circular section wire material TITANIUM GR5

Product Details

Reference M01MCPF5139

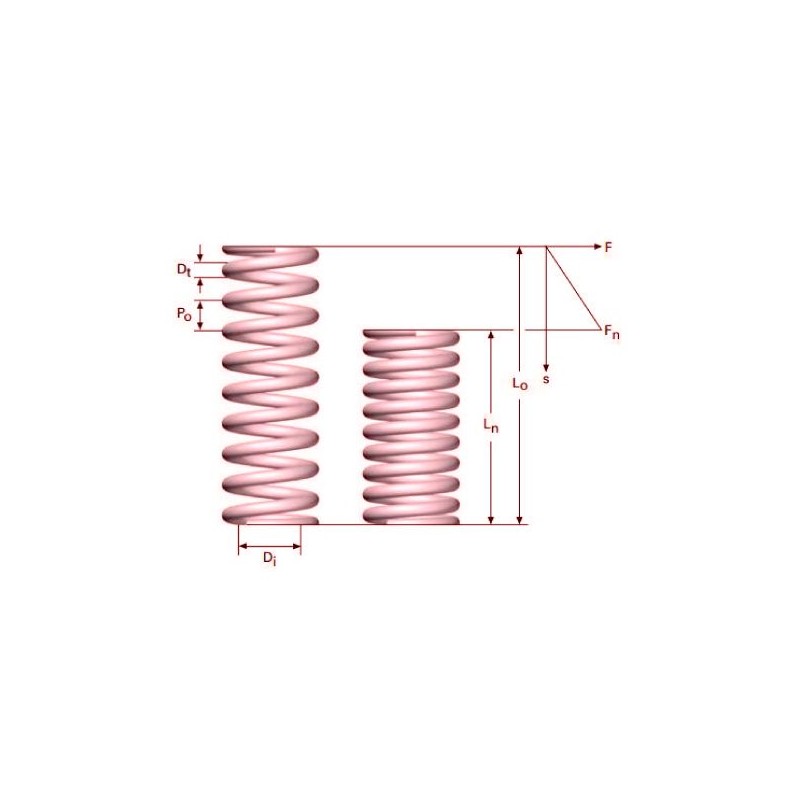

Data sheet

FREE LENGTH: 27
OUTSIDE DIAMETER: 13.5
INSIDE DIAMETER: 11.2
WIRE DIAMETER: 1.15
ACTIVE COILS: 4
TOTAL COILS: 6
SPRING RATE (K): 1.16
RAW MATERIAL: TITANIUM GR.5
ENDS: CLOSED & GROUND
SURFACE COATING: NO PROTECTION
SOLID LENGTH: 6.9
